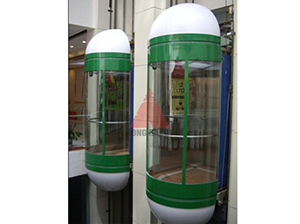

Sightseeing elevator

The luxury integrate vision, so simple and elegant accomplishments. HZ YUANDA tourism ladder will graceful arc, luxurious interiors, fashion design, wide field of view integration, living ladder, distinguished enjoy spontaneously. Ceiling and floor echoes, metal and transparent glass door sedan complements the overall projected modern fashionable, available for several years much like the majority of owners alike. HZ YUANDA tourism ladder will YUANDA grasp of architectural features and aestheti
  • Features
  • Parameters
  • Customize
  • Reviews

Safe and reliable
Using a self-generating power brake effectively prevent danger to slip. YD designed safety components manufactured cohesion decades of professional experience, their safety performance has passed rigorous certification。

Fashion Design
Focused on providing the perfect solution for the building, the modern aesthetics of art and architectural design ideas perfect fusion using diverse performance practices, allowing you to be satisfied with the ubiquitous visual enjoyment。

Space to enjoy
180-degree all-round achievements transparent car visual experience, so you stay scenery, beautiful panoramic view of the city. Lifting construction shackles from viewing those into the scene。

Energy efficiency experts
The use of permanent magnet synchronous gearless traction technology, with more significant energy saving effect, the energy consumption is only 65% of traditional elevator。


Specification 630(8People/p) 800(10People/p) 1050(14People/p) 1350(18People/p) 1600(21People/p)
Load(kg) 630 800 1050 1350 1600
Shape Square Semicircle Diamond Square Semicircle Diamond Square Semicircle Diamond Semicircle Semicircle
Speed(m/s) 1.0  1.75 1.0  1.75 1.0  1.75 1.0  1.75 1.0  1.75
Control Complete election control
Drive mode VVVF drive
Door control VVVF inverter door
Host form Permanent magnet synchronous gearless machine
Communication Serial communication
Car specifications (W * D * H) 1100*1550*2350
1100*1400*2350
1100*1550*2350
1300*1600*2350
1300*1450*2350
1300*1600*2350
1500*1700*2350
1500*1600*2350
1500*1700*2350
1700*1900*2350 1700*2200*2350
Door sizes(W * H) Carve800*2100 Carve800*2100 Carve900*2100 Carve1100*2100 Carve1100*2100
Lift height <90m <90m <90m <90m <90m
The top station 32/32   40/40   40/40   40/40
Well Size(W * D) 2000*2050
2000*1850
2000*2050
2100*2050
2100*1950
2100*2050
2400*2150
2400*2050
2400*2150
2600*2350 2600*2650
Host location Set inside the hoistway
The top height 1.0
1.75
2.0
2.5
4300 4300
4500 4500
-- --
-- --
4300 4300
4500 4500
4600 4600
4850 4850
4300 4300
4500 4500
4600 4600
4850 4850
4400
4600
4700
4950
4400
4600
4700
4950
Pit Depth 1.0
1.75
2.0
2.5
1750 1600
1900 1750
-- --
-- --
1850 1600
2000 1750
2050 1800
2200 1950
1950 1600
2100 1750
2150 1800
2300 1950
2050
2200
2250
2400
2050
2200
2250
2400
Motor rated power(kw) 1.0
1.75
2.0
2.5
4.6
8
--
--
5.5
9.6
13.4
16.8
6.7
11.7
13.4
16.8
8.6
11.7
13.4
16.8
10.5
18.3
21.7
27.2



Rated Current(A) 1.0
1.75
2.0
2.5
10.5
18.3
--
--
11
18
27
34
13
23
27
34
16.7
29.3
44.8
44.8
19
33
46
46
Lift the main power requirements 380V,50HZThree-phase five-wire system, separated from ground zero, see civil layout requirements
Minimum wiring requirements Copper sheathed cable( 3.6mm2+2*6mm2)    Copper sheathed cable( 3.102mm+2*6mm2
